4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU
4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU
  • 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU
  • 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU
  • 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU
  • 4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU

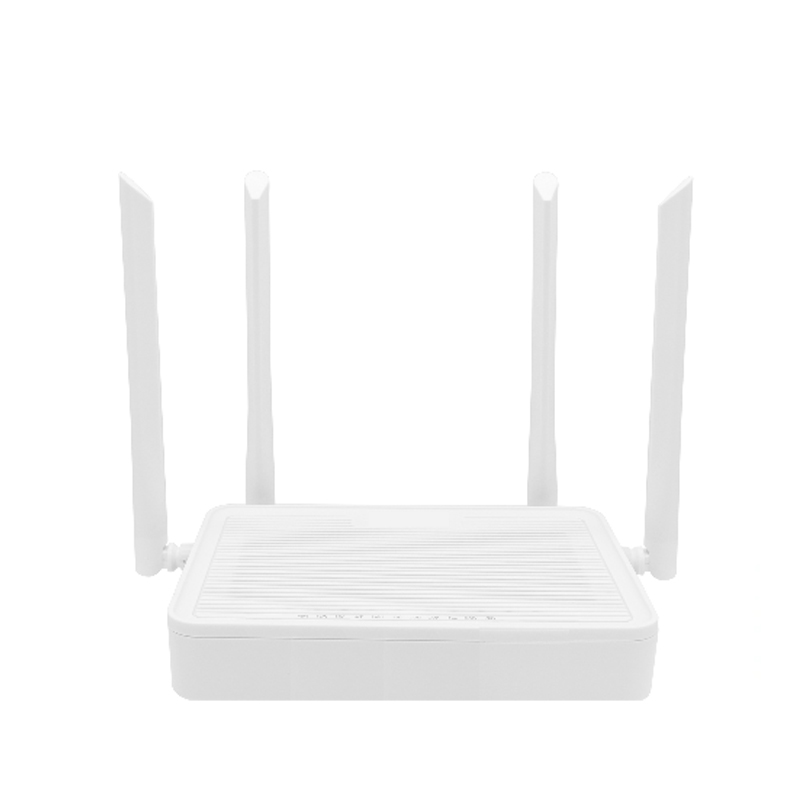

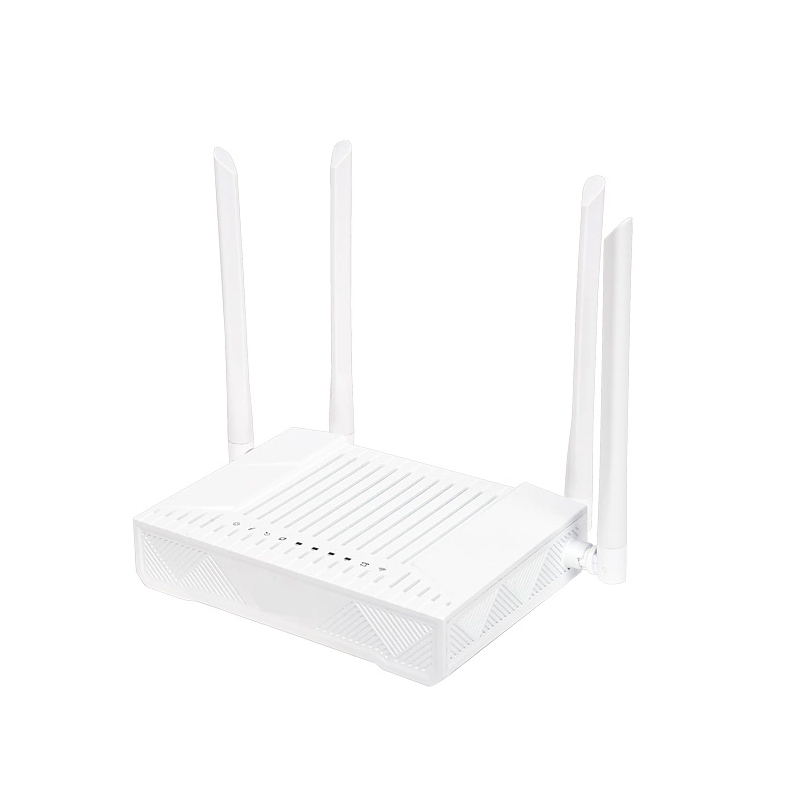

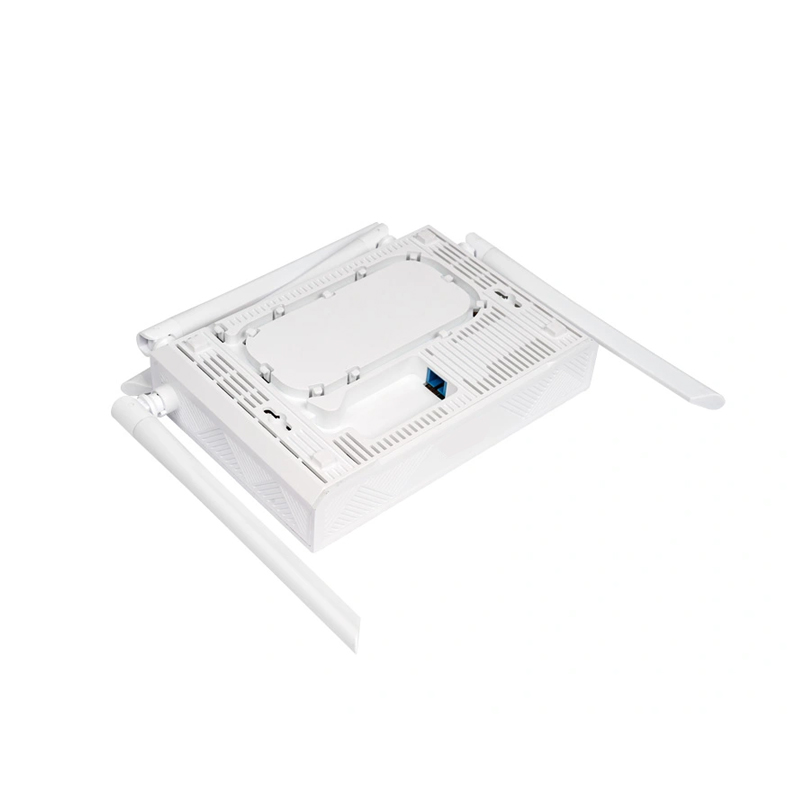

4GE+1POTS+2WiFi6(AX3000)+CATV XPON ONU

Artículo No.: WK-3834AXWTC
WK-3834AXWTC is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company GPON OLT or EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, WIFI and CATV services based on GPON and EPON technology.
Solicitud de cotización
Descripción Technical Parameter Revisar
Descripción
Technical Parameter



User Port (LAN)
RJ-45 connector
4 *10/100/1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
Indicators
PWR / PON / LOS / LAN1-4 / INT / TEL / CATV / WIFI
PON Port
PON Mode
EPON：1000BASE-PX20+ symmetric
GPON：FSAN G.984.2 standard,Class B+
PON Rate
EPON：1.25Gbps downstream/upstream
GPON：2.488Gbps/1.244Gbps downstream/upstream
Working temperature
0 to 40ºC
Operating humidity
10% ~ 90% (Non-condensing)
Power consumption
≤11.7W
Dimensions
234*157.5*32mm
Weight
About 300g
