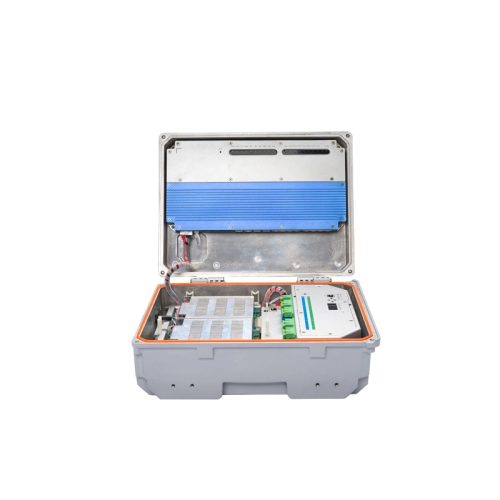

Integrated EYDFA 8 PON Ports GPON Outdoor OLT

Artículo No.: WK-OLT-8POG-B
The product adopts cast aluminum shell, which has good heat dissipation and shielding effect. The equipment is flexible to use and easy to deploy, meeting the requirements of equipment performance in outdoor environment.

The device provides 2 uplink GE ports, 2 uplink SFP ports, 2*10GE uplink ports and 8 GPON ports, 1 in-band management port, 1 out-band management port, and supports dual power supply configuration.

The maximum split ratio of each GPON optical port is 128, and the system can support up to 1024 ONUs. The product is suitable for FTTH access, video surveillance network, enterprise LAN, Internet of Things and other network applications of operator networks, and has a high cost performance.
Descripción Technical Parameter
Descripción
Product Interface


OLT Deep in Node, Accelerate Service Development

High Reliability, Long-time Working without Fault


Environmentally-hardened Flexible for Indoor or Outdoor Deployment


Integrated EYDFA for CATV MSO 1550nm RF Overlay Solution (Optional)

Easy Maintenance, Efficient Management


Typical Application

Technical Parameter
Specifications
8*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+
Management Rack
Field type slave equipment,Cast aluminum housing
Uplink Port
2* 10/100/1000M auto-negotiation Ethernet ports
2 SFP interfaces
2 SFP+ interfaces
PON Port Quantity
8
Physical interface
SFP slot
Interface type
GPON: ITU-TG.984.2 Class B+/Class C+
Max splitting ratio
GPON: 1:128
Transmission distance
20KM
Backplane Bandwidth
78G
Size
385*306.95*180mm
Weight
12.6KG
Power supply
AC: 100V~240V,50/60Hz
Working temperature
-40 ~ 65℃
