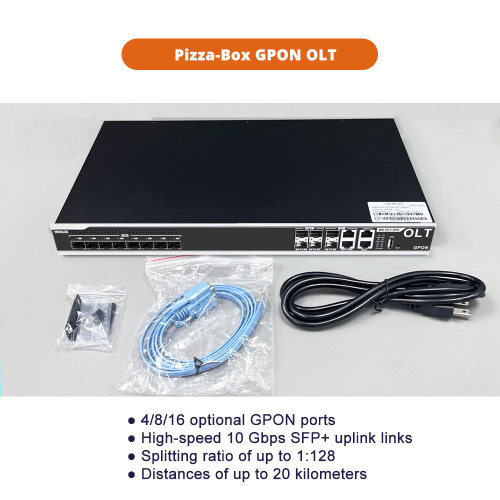

Wolck Pizza-Box 8 PON Ports GPON OLT
|
Mechanics |
|||
|
Management Rack |
1U 19-inch standard box |
||
|
Dimensions |
440mm(L)*276mm(W)*44mm(H) |
||
|
Weight |
4.50Kg |
||
|
Hardware |
|||
|
Uplink Port |
2 10/100/1000M auto-negotiation Ethernet ports |
||
|
2 SFP interfaces |
|||
|
10-Gigabit |
4 SFP+ interfaces |
||
|
PON Port |
Quantity |
8 |
|
|
Physical interface |

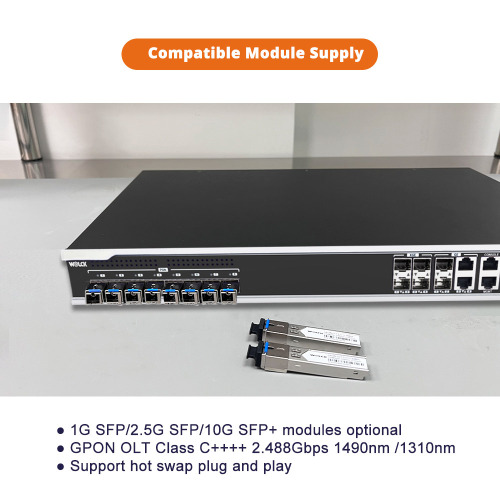

SFP slot |
||
|
Interface type |
GPON: ITU-TG.984.2 Class B+/Class C+ |
||
|
Max splitting ratio |
GPON: 1:128 |
||
|
Management Port |
1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port |
||
|
USB Port |
1 USB interface (It’s used to backup configuration, upgrade program, and record log information) |
||
|
PON Port attribute |
Transmission distance |
20KM |
|
|
Port rate |
GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps |
||
|
Wavelength |
Forwarding: 1490nm Receiving: 1310nm |
||
|
Interface type |
SC/UPC |
||
|
Fiber type |
9/125μm SMF (Single Mode Fiber) |
||
|
Light transmission power |
Class B+ +1.5 ~ +5dBm |
Class C+ +3 ~ +7dBm |
|
|
Receiving sensitivity |
Class B+ : -28dBm |
Class C+ : -30dBm |
|
|
Saturation power |
Class B+ -8dBm |
Class C+ -12dBm |
|
|
Backplane Bandwidth |
118G |
||
|
Power supply |
|||
|
AC |
100V ~ 240V，47~63Hz |
||
|
DC |
-40V ~ -72V |
||
|
Environment |
|||
|
Working temperature |
-15 ~ 50℃ |
||
|
Storage temperature |
-40 ~ 85℃ |
||
|
Ambient humidity |
5 ~ 90% (Non-condensing) |
||
|
ITEM
|
 |
 |
 |
|
| WK-OLT-4PG-B | WK-OLT-8PG-B | WK-OLT-16PG-B | ||
| Specifications | 4*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+ | 8*GPON + 4*GE + 4*GE SFP + 2*10GE SFP+ | 16*GPON + 2*GE + 2*GE SFP + 2*10GE SFP+ | |
| Rack | Type | 1U 19-inch standard box | ||
| Uplink Port | COMBO port | 4 10/100/1000M auto-negotiation Ethernet ports | ||
| 4 SFP interfaces | ||||
| 10-Gigabit | 2 SFP+ interfaces | |||
| PON Port | Quantity | 4 | 8 | 16 |
| Physical interface | SFP | |||
| Interface type | GPON: ITU-TG.984.2 Class B+/Class C+ | |||
| Max splitting ratio | GPON: 1:128 | |||
| Management Port | 1 100/1000BASE-Tx out-band Ethernet port | |||
| 1 CONSOLE local management port | ||||
| USB Port | 1 USB | |||
| PON Port Attribute | Transmission distance | 20KM | ||
| Port rate | Downstream: 2.5Gbps Upstream: 1.25Gbps | |||
| Wavelength | Forwarding: 1490nm | |||
| Receiving: 1310nm | ||||
| Interface type | SC/UPC | |||
| Fiber type | 9/125μm SMF (Single Mode Fiber) | |||

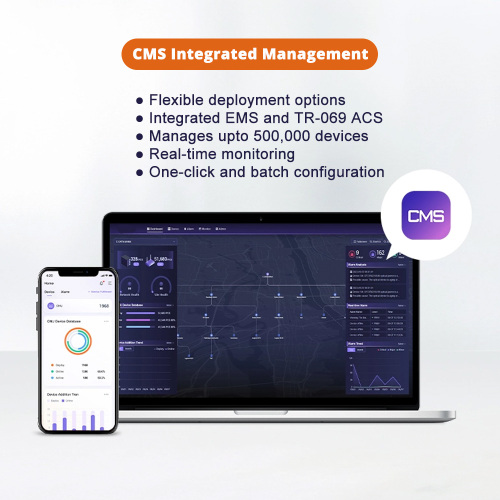

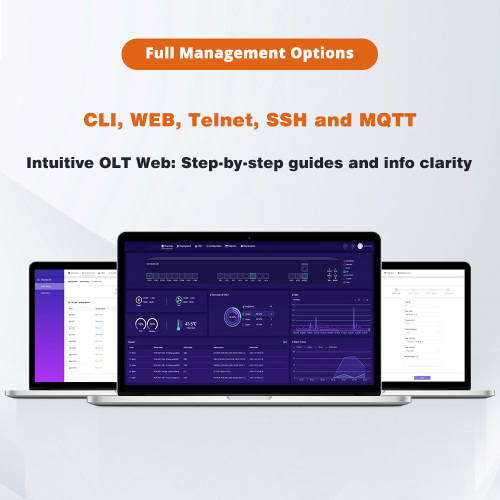

| Network Management Method | Support CLI、SNMP、TELNET、SSH、WEB | |||
| Backplane Bandwidth | 63G | 78G | 108G | |
| Size | 440*44*276mm | 440*44*276mm | 440*44*276mm | |
| Weight | 4.0Kg | 4.50Kg | 5kg | |
| Maximum Power | 220VAC | AC: 100V～240V，47/63Hz | AC: 100V～240V，47/63Hz | AC: 90V～240V, 47/63Hz |
| -48DC | DC:-40V～-72V | DC:-40V～-72V | DC:-40V～-72V | |
| BBU | DC: 11V～14V | DC: 11V～14V | DC: 11V～14V | |
| 45W | 78W | 100W | ||
| Working Environment | Working temperature | -15～50℃ | ||
| Storage temperature | -40～85℃ | |||
| Humidity | 5～90% | |||
